SeriesValueModifier

The SeriesValueModifier is a custom ChartModifier that places a SeriesValueModifier.SeriesValueMarkerAnnotation on the YAxis for each RenderableSeries in the chart, showing the current IRenderableSeries latest Y-value.

![Series Value Modifier](../images/series-value-modifier.mp4">

Note

Examples of the SeriesValueModifier usage can be found in the SciChart Android Examples Suite as well as on GitHub:

Adding the SeriesValueModifier to a Chart

Any Chart Modifier can be added to a SciChartSurface via the chartModifiers property and SeriesValueModifier is no different.

// Assume a surface has been created and configured somewhere
// Create a modifier
SeriesValueModifier seriesValueModifier = new SeriesValueModifier();

// Add the modifier to the surface
surface.getChartModifiers().add(seriesValueModifier);
Note

To learn more about features available, Chart Modifier APIs article.

Excluding a Series from the SeriesValueModifier

By default, all RenderableSeries from renderableSeries collection are included in the SeriesValueModifier and thus will have an axis marker placed on YAxis. This behavior can be controlled and to do so you’ll need to create a SeriesValueModifier.DefaultSeriesValueMarkerFactory instance with a predicate to decide which series would you like to include or exclude.

Imagine you have three IRenderableSeries and you want to show marker only for a series with the name "Blue Series". Please see the code below, which shows how to do just that:

// Assume renderable series with name "Blue Series" has been created and configured somewhere
// Create a factory with a predicate
final SeriesValueModifier.DefaultSeriesValueMarkerFactory factory = new SeriesValueModifier.DefaultSeriesValueMarkerFactory(series ->
        series.getDataSeries().getSeriesName() == "Blue Series"
);

// Create seriesValueModifier with this factory
final SeriesValueModifier seriesValueModifier = new SeriesValueModifier(factory);

// Add the modifier to the surface
surface.getChartModifiers().add(seriesValueModifier);

The result is that only the blue series has a marker:

Series Value Modifier

Styling the SeriesValueModifier Axis Markers

By default, SeriesValueModifier uses SeriesValueModifier.DefaultSeriesValueMarker to create SeriesValueModifier.SeriesValueMarkerAnnotation. You can customize a marker annotation style or provide some complete custom annotation.

Note

To learn more about AxisMarkerAnnotation API, follow AxisMarkerAnnotation API article.

As an example of such customization, let’s place a HorizontalLineAnnotation with an axis label. You will need to write few classes with some implementations to inject the desired marker into the SeriesValueModifier pipeline. Those are:

class HorizontalLineSeriesValueMarkerAnnotation extends HorizontalLineAnnotation {
    final SeriesValueModifier.DefaultSeriesValueMarkerAnnotationHelper<HorizontalLineSeriesValueMarkerAnnotation> seriesValueHelper;

    public HorizontalLineSeriesValueMarkerAnnotation(
            Context context,
            SeriesValueModifier.DefaultSeriesValueMarkerAnnotationHelper<HorizontalLineSeriesValueMarkerAnnotation> seriesValueHelper
    ) {
        super(context);

        this.seriesValueHelper = seriesValueHelper;
    }

    @Override
    public void attachTo(IServiceContainer services) {
        final IRenderableSeries renderableSeries = seriesValueHelper.renderableSeries;

        setXAxisId(renderableSeries.getXAxisId());
        setYAxisId(renderableSeries.getYAxisId());

        super.attachTo(services);
    }

    @Override
    protected void update(ICoordinateCalculator xCalc, ICoordinateCalculator yCalc) {
        seriesValueHelper.tryUpdateAnnotation(this);

        super.update(xCalc, yCalc);
    }
}

class HorizontalLineSeriesValueMarkerAnnotationHelper extends SeriesValueModifier.DefaultSeriesValueMarkerAnnotationHelper<HorizontalLineSeriesValueMarkerAnnotation> {
    private float lineThickness = convertValueToDp(1);
    private float[] dashPattern = new float[] { convertValueToDp(4), convertValueToDp(4)};

    public HorizontalLineSeriesValueMarkerAnnotationHelper(IRenderableSeries renderableSeries, Predicate<IRenderableSeries> isValidRenderableSeriesPredicate) {
        super(renderableSeries, isValidRenderableSeriesPredicate);
    }

    @Override
    protected void updateAnnotation(HorizontalLineSeriesValueMarkerAnnotation annotation, Comparable<?> lastValue, int lastColor) {
        super.updateAnnotation(annotation, lastValue, lastColor);

        Dispatcher.postOnUiThread(new Runnable() {
            @Override
            public void run() {
                annotation.setStroke(new SolidPenStyle(lastColor, false, lineThickness, dashPattern));

                int count = annotation.annotationLabels.size();
                for (int i = 0; i < count; i++) {
                    final AnnotationLabel label = annotation.annotationLabels.get(i);
                    label.setBackground(new PaintDrawable(lastColor));
                    label.setFontStyle(new FontStyle(convertValueToDp(12), ColorUtil.getInvertedColor(lastColor)));
                }
            }
        });
    }
}

class HorizontalLineSeriesValueMarker extends SeriesValueModifier.SeriesValueMarkerBase {
    private HorizontalLineSeriesValueMarkerAnnotation markerAnnotation;

    protected HorizontalLineSeriesValueMarker(
            IRenderableSeries renderableSeries,
            Predicate<IRenderableSeries> isValidRenderableSeriesPredicate
    ) {
        super(renderableSeries, isValidRenderableSeriesPredicate);
    }

    @Override
    protected void tryRemoveMarkerAnnotation(ISciChartSurface parentSurface) {
        parentSurface.getAnnotations().remove(markerAnnotation);
    }

    @Override
    protected void tryAddMarkerAnnotation(ISciChartSurface parentSurface) {
        ListUtil.safeAddExact(parentSurface.getAnnotations(), markerAnnotation);
    }

    @Override
    protected void createMarkerAnnotation(Context context) {
        markerAnnotation = new HorizontalLineSeriesValueMarkerAnnotation(
                context,
                new HorizontalLineSeriesValueMarkerAnnotationHelper(
                        renderableSeries,
                        isValidRenderableSeriesPredicate
                )
        );

        final AnnotationLabel label = new AnnotationLabel(context);
        label.setLabelPlacement(LabelPlacement.Axis);
        markerAnnotation.annotationLabels.add(label);
    }

    @Override
    protected void destroyMarkerAnnotation() {
        markerAnnotation = null;
    }
}

class HorizontalLineSeriesValueMarkerFactory implements SeriesValueModifier.ISeriesValueMarkerFactory {
    private Predicate<IRenderableSeries> isValidSeriesPredicate;

    protected HorizontalLineSeriesValueMarkerFactory(Predicate<IRenderableSeries> isValidSeriesPredicate) {
        super();

        this.isValidSeriesPredicate = isValidSeriesPredicate;
    }

    @Override
    public SeriesValueModifier.ISeriesValueMarker createMarkerFor(IRenderableSeries renderableSeries) {
        return new HorizontalLineSeriesValueMarker(renderableSeries, isValidSeriesPredicate);
    }
}

final SeriesValueModifier seriesValueModifier = new SeriesValueModifier(
        new HorizontalLineSeriesValueMarkerFactory(item -> true)
);
surface.getChartModifiers().add(seriesValueModifier);

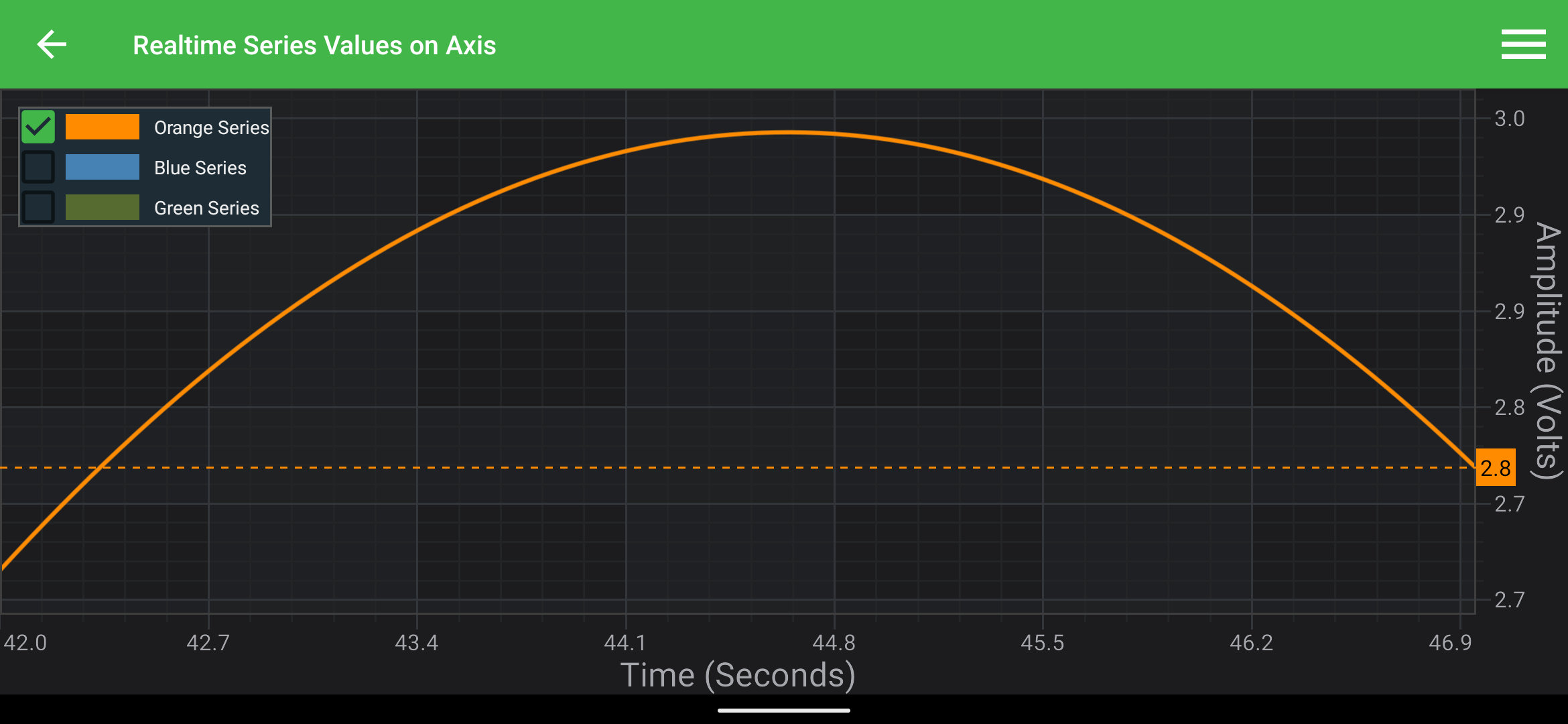

This produces the following output:

Series Value Modifier Custom Marker
