UniformVectorFieldDataSeries Class
Represents a uniform grid vector field — vectors defined at every intersection of evenly spaced X and Y axes — as an IDataSeries<TX,TY> to be displayed by SciChart.Charting.Visuals.RenderableSeries.VectorFieldRenderableSeries.

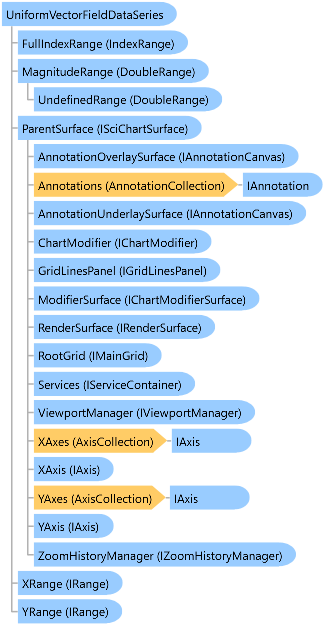

Object Model
Syntax
public class UniformVectorFieldDataSeries : VectorFieldDataSeriesBase, IDataDistributionProvider, IDataSeries, SciChart.Charting.Model.DataSeries.IDataSeries<double,double>, SciChart.Core.Framework.ISuspendable
Remarks
Grid origin positions are defined implicitly by XStart, XStep, XCount, YStart, YStep, and YCount, so no separate X/Y coordinate arrays need to be allocated.
DX/DY arrays are indexed as [xi, yi]. Grid dimensions are inferred from dx.GetLength(0) and dx.GetLength(1).
Inheritance Hierarchy
System.Object
SciChart.Charting.Model.DataSeries.VectorFieldDataSeriesBase
SciChart.Charting.Model.DataSeries.UniformVectorFieldDataSeries
Requirements
Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
