The Ternary Error Bar type

NOTE: For info about XyzDataSeries, as well as other DataSeries types in SciChart, see DataSeries API

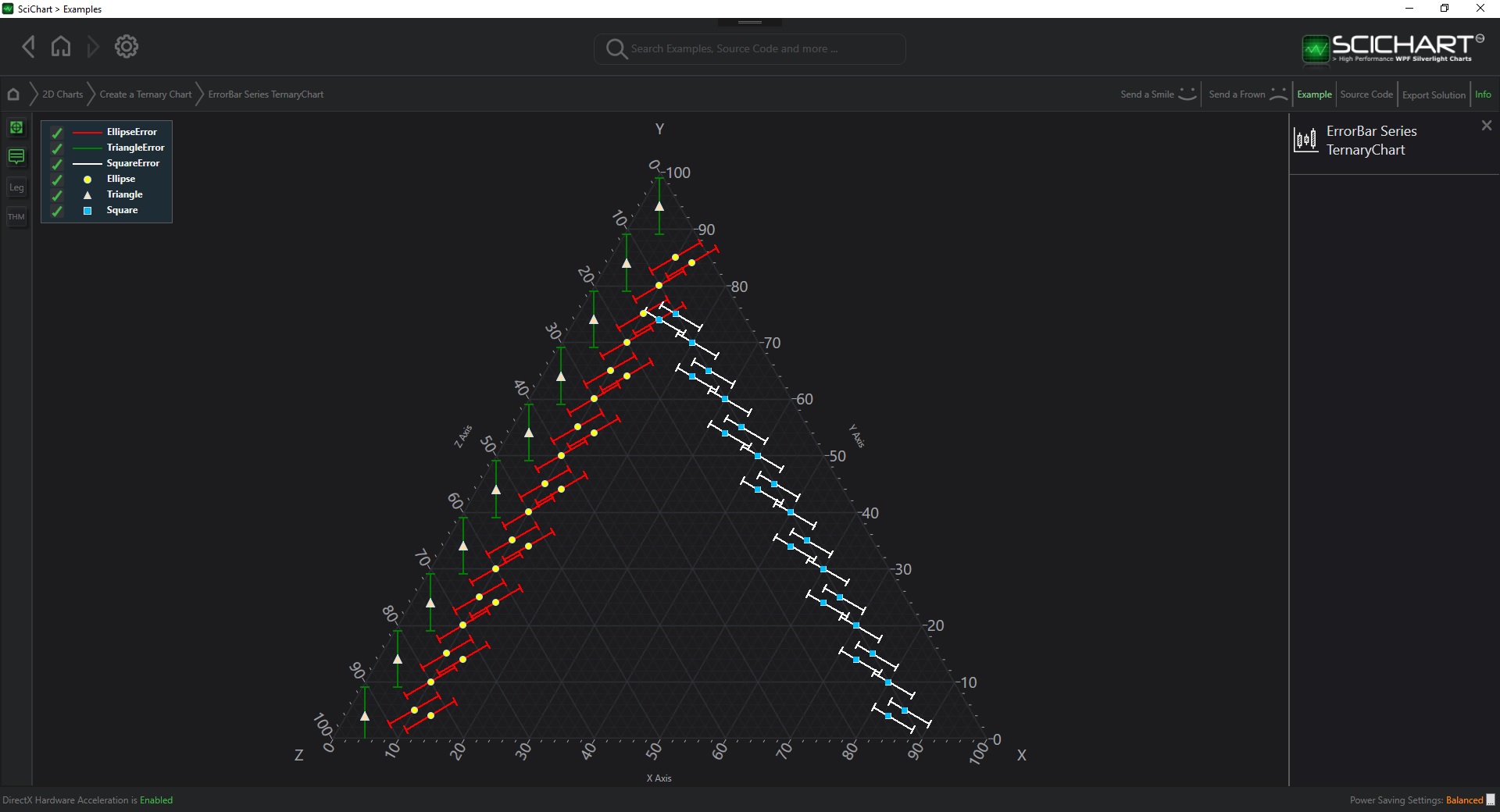

Ternary Error Bar Series are provided by the TernaryErrorBarRenderableSeries type. This renders error bars above and below the X, Y or Z-value.

To declare a TernaryErrorBarRenderableSeries, use the following code:

Declare a TernaryErrorBarRenderableSeries in Xaml / Code Behind

Declare a TernaryErrorBarRenderableSeries
Copy Code
<!-- where xmlns:s="http://schemas.abtsoftware.co.uk/scichart" -->
<s:SciChartTernarySurface>
    <s:SciChartTernarySurface.RenderableSeries>
        <s:TernaryErrorBarRenderableSeries x:Name="errorBarsSeries"
                                           ErrorBarCupLength="5"
                                           ErrorDirection="ZAxis"
                                           ErrorType="Absolute"
                                           HighError="5"
                                           LowError="5"
                                           Stroke="Red"
                                           StrokeThickness="2" />
    </s:SciChartTernarySurface.RenderableSeries>
</s:SciChartTernarySurface>
// Code Behind, e.g. in OnLoaded event handler, set the DataSeries
var errorBarDataSeries = new XyzDataSeries<double,double,double>();

errorBarDataSeries.Append(15, 75, 10);
errorBarDataSeries.Append(25, 65, 10);
errorBarDataSeries.Append(35, 55, 10);
errorBarDataSeries.Append(45, 45, 10);

errorBarsSeries.DataSeries = errorBarDataSeries;



Declare a TernaryErrorBarRenderableSeries in Pure Code

Declare a TernaryErrorBarRenderableSeries
Copy Code
// Declare the SciChartTernarySurface
var sciChartTeranrySurface = new SciChartTernarySurface();
// ...
// Declare and add a Ternary Error Bar Series
var ternaryErrorBarSeries = new TernaryErrorBarRenderableSeries
{
    ErrorBarCupLength = 5,
    ErrorDirection = ErrorDirection.ZAxis,
    ErrorType = ErrorType.Absolute,
    HighError = 5,
    LowError = 5,
    Stroke = Colors.Red,
    StrokeThickness = 2
};

// Set some data
var errorBarDataSeries = new XyzDataSeries<double, double, double>();

errorBarDataSeries.Append(15, 75, 10);
errorBarDataSeries.Append(25, 65, 10);
errorBarDataSeries.Append(35, 55, 10);
errorBarDataSeries.Append(45, 45, 10);

errorBarsSeries1.DataSeries = errorBarDataSeries;

NOTE: You can also declare RenderableSeries using full MVVM (series ViewModels). Please see MVVM DataSeries / RenderableSeries API for more details.
