The BoxAnnotation

The BoxAnnotation draws a rectangle at specific X1, X2, Y1, Y2 coordinates:

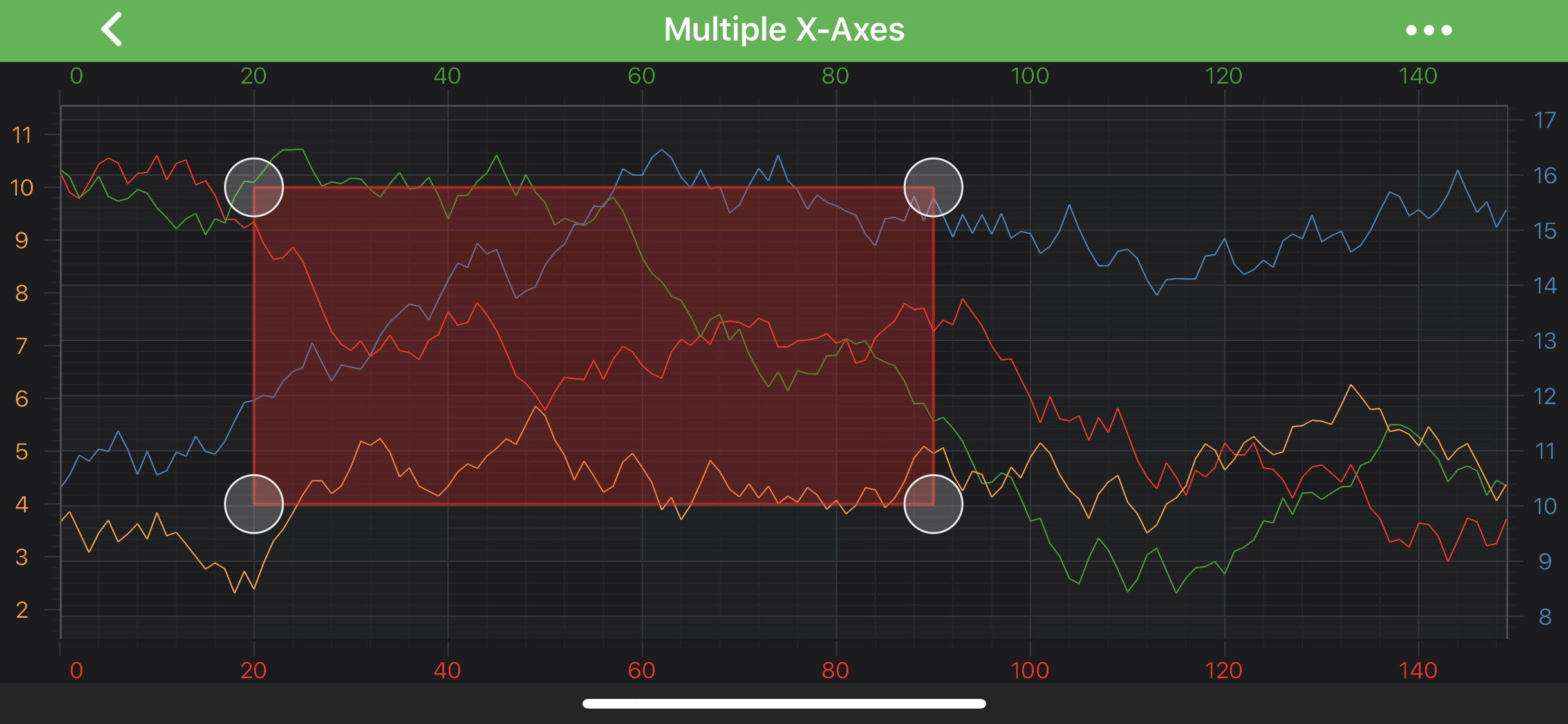

Box Annotation

Note

Examples of the Annotations usage can be found in the SciChart Android Examples Suite as well as on GitHub:

A BoxAnnotation is placed on a chart at the position determined by its [X1, Y1] and [X2, Y2] coordinates, which correspond to the top-left and bottom-right corners of the drawn rectangle. Those can be accessed via the following properties: x1, y1, x2, y2

Note

The xAxisId and yAxisId must be supplied if you have axis with non-default Axis Ids, e.g. in multi-axis scenario.

Create a BoxAnnotation

A BoxAnnotation can be added onto a chart using the following code:

// Assume a surface has been created and configured somewhere
// Create a BoxAnnotation
final BoxAnnotation boxAnnotation = new BoxAnnotation(getContext());

// Allow to interact with the annotation in run-time
boxAnnotation.setIsEditable(true);

// in a multi-axis scenario, specify the XAxisId and YAxisId
boxAnnotation.setXAxisId("TopAxisId");
boxAnnotation.setYAxisId("LeftAxisId");

// Specify a desired position by setting coordinates
boxAnnotation.setX(20.0f);
boxAnnotation.setY1(10.0f);
boxAnnotation.setX2(90.0f);
boxAnnotation.setY2(4.0f);

// Specify the background resource
boxAnnotation.setBackgroundResource(R.drawable.example_box_annotation_background);

// Add the annotation to the AnnotationsCollection of a surface
surface.getAnnotations().add(boxAnnotation);

// Assume a surface has been created and configured somewhere
// Create a BoxAnnotation
BoxAnnotation boxAnnotation = sciChartBuilder.newBoxAnnotation()
        // Allow to interact with the annotation in run-time
        .withIsEditable(true)
        // in a multi-axis scenario, specify the XAxisId and YAxisId
        .withXAxisId("TopAxisId")
        .withYAxisId("LeftAxisId")
        // Specify a desired position by setting coordinates
        .withPosition(20.0f, 10.0f, 90.0f, 4.0f)
        // Specify the background resource
        .withBackgroundDrawableId(R.drawable.example_box_annotation_background)
        .build();

// Add the annotation to the AnnotationsCollection of a surface
surface.getAnnotations().add(boxAnnotation);

// Assume a surface has been created and configured somewhere
// Create a BoxAnnotation
val boxAnnotation = BoxAnnotation(context)

// Allow to interact with the annotation in run-time
boxAnnotation.setIsEditable(true)

// in a multi-axis scenario, specify the XAxisId and YAxisId
boxAnnotation.xAxisId = "TopAxisId"
boxAnnotation.yAxisId = "LeftAxisId"

// Specify a desired position by setting coordinates
boxAnnotation.x = 20.0f
boxAnnotation.y1 = 10.0f
boxAnnotation.x2 = 90.0f
boxAnnotation.y2 = 4.0f

// Specify the background resource
boxAnnotation.setBackgroundResource(R.drawable.example_box_annotation_background)

// Add the annotation to the AnnotationsCollection of a surface
surface.annotations.add(boxAnnotation)

Note

To learn more about other Annotation Types, available out of the box in SciChart, please find the comprehensive list in the Annotation APIs article.
