In the previous tutorials we showed you how to use <SciChartReact/> onInit and React State / Contexts to allow you to control chart data and chart state via buttons hosted in your app.
In this tutorial, we're going to show how to dynamically add & remove chart panels from a <SciChartGroup/> - a React component in scichart-react which allows you to host several charts together in a group, and synchronize zooming, panning and axis sizes in order to create dynamic linked dashboards using SciChart.js.
As a basis for this tutorial, use Tutorial 01 - Understanding the scichart-react boilerplate for the initial project setup. Go ahead and copy the boilerplate to a new folder or project. You can get the code from here: Boilerplates/scichart-react
Before we Begin
Let's roll back some changes from the previous tutorial. We want our App.jsx to be simpler, removing ToggleButton, <SciChartReact/> and the ChartContext.
| App.jsx |
Copy Code
|
|---|---|
import React from "react"; import "./styles.css"; function App() { return ( <div className="App"> <header className="App-header"> <h1><SciChartReact/> with custom chart controls</h1> </header> <div style={{ display: "flex", justifyContent: "left", backgroundColor: "lightgrey", padding: "10px", }} > {/* TODO: Add chart controls here */} </div> {/* TODO: Add SciChartReact here */} </div> ); } export default App; |
|
Here we want to create a <SciChartGroup/> which can host one or more <SciChartReact/> components to make our dashboard or group of charts.
Import { SciChartGroup, SciChartReact } from "scichart-react" to begin, and replace the {/* TODO: Add SciChartReact here */} with a <SciChartGroup/> component.
Place two <SciChartReact/> components as children to the <SciChartGroup/> and for now, create a placeholder initChart function just to create a simple chart with x and y axis.
| App.jsx |
Copy Code
|
|---|---|
import React from "react"; import "./styles.css"; import { SciChartGroup, SciChartReact } from "scichart-react"; import { SciChartSurface, NumericAxis, SciChartJsNavyTheme } from "scichart"; const simpleChart = async (divElement, chartId) => { const { sciChartSurface, wasmContext } = await SciChartSurface.create( divElement, { title: `Chart ${chartId}`, titleStyle: { fontSize: 28 }, theme: new SciChartJsNavyTheme(), } ); sciChartSurface.xAxes.add( new NumericAxis(wasmContext, { axisTitle: "X Axis" }) ); sciChartSurface.yAxes.add( new NumericAxis(wasmContext, { axisTitle: "Y Axis" }) ); return { sciChartSurface }; }; function App() { return ( <div className="App"> <header className="App-header"> <h1><SciChartReact/> chart groups</h1> </header> <div style={{ display: "flex", justifyContent: "left", backgroundColor: "lightgrey", padding: "10px", }} > {/* TODO: Add chart controls here */} </div> <div style={{ height: "600px" }}> <SciChartGroup> <SciChartReact initChart={(div) => simpleChart(div, 0)} style={{ height: "50%" }} /> <SciChartReact initChart={(div) => simpleChart(div, 1)} style={{ height: "50%" }} /> </SciChartGroup> </div> </div> ); } export default App; |
|

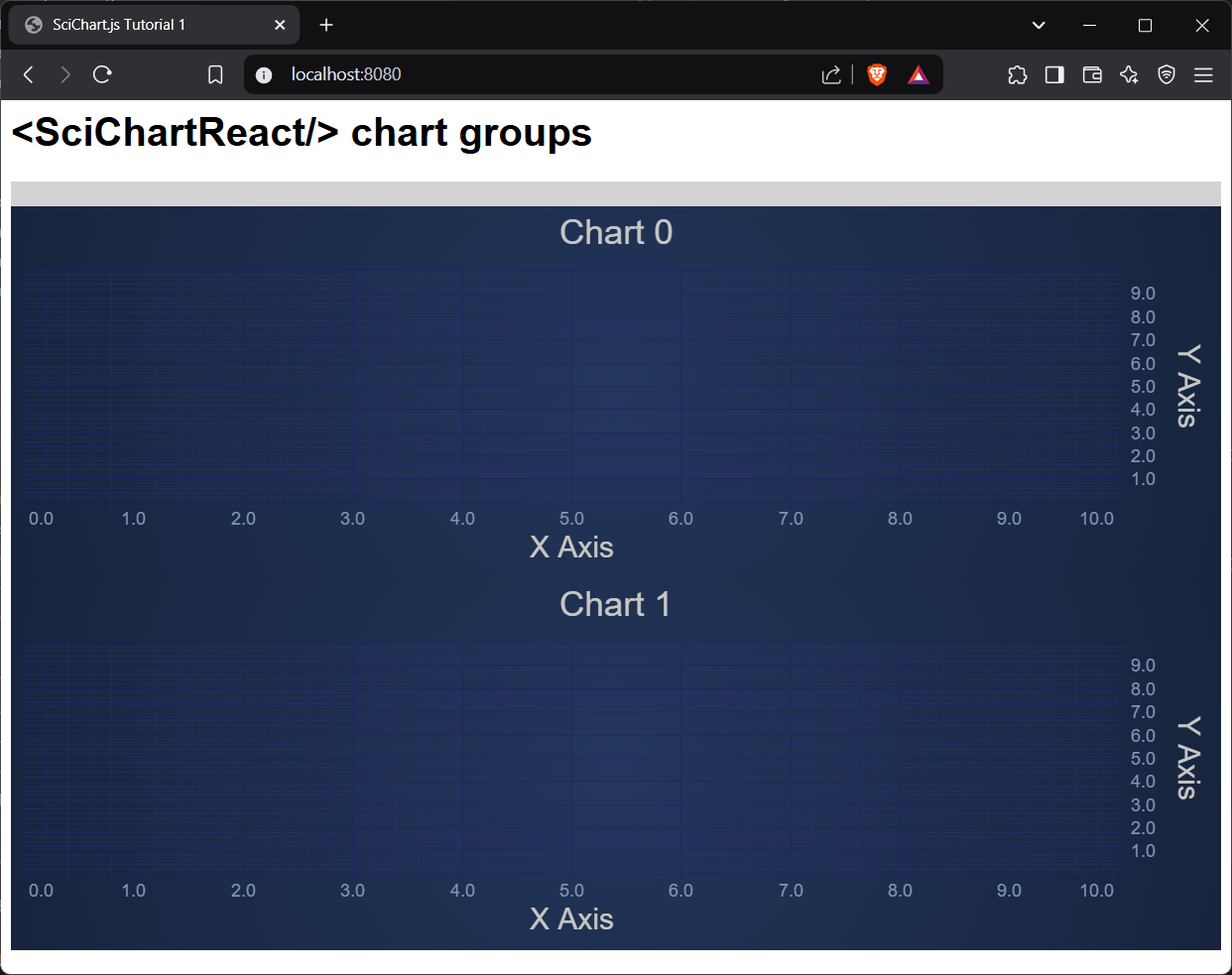

If you run the app now, you should see the following output:
<SciChartGroup/> is a non visual React component, so if you want to set the size of the entire chart group, consider wrapping it in a <div> and setting the style property. Then, individual <SciChartReact/> components can have relative sizes such as "50%"
Dynamically Adding/Removing Charts to <SciChartGroup/>
Next, want to make this example dynamic, by adding a toolbar button to Add and Remove a chart. We will do this by adding/removing <SciChartReact/> components directly from the <SciChartGroup/> component.
Start by importing useState from "react"
| App.jsx |
Copy Code
|
|---|---|
import React, { useState } from "react";
|
|
Next, we want to add an initial state with our charts. This will simply be an array of numbers but it could be an array of objects storing chart related data, configuration or parameters. We want to add an addChart and removeChart function which manipulates the array.
| App.jsx |
Copy Code
|
|---|---|
function App() {
const [charts, setCharts] = useState([0, 1]); // Initialize with 2 charts
const addChart = () => {
setCharts([...charts, charts.length]);
};
const removeChart = () => {
if (charts.length > 0) {
setCharts(charts.slice(0, -1));
}
};
|
|
Finally, update the App component to return buttons to add and remove a chart. We will update the children of <SciChartGroup/> to map the charts state to 0..N <SciChartReact/> components.
The height of each <SciChartReact/> component is dynamically adjusted based on the number of charts, to ensure the total parent group size does not exceed 600px.
Here's the final App.jsx source code:

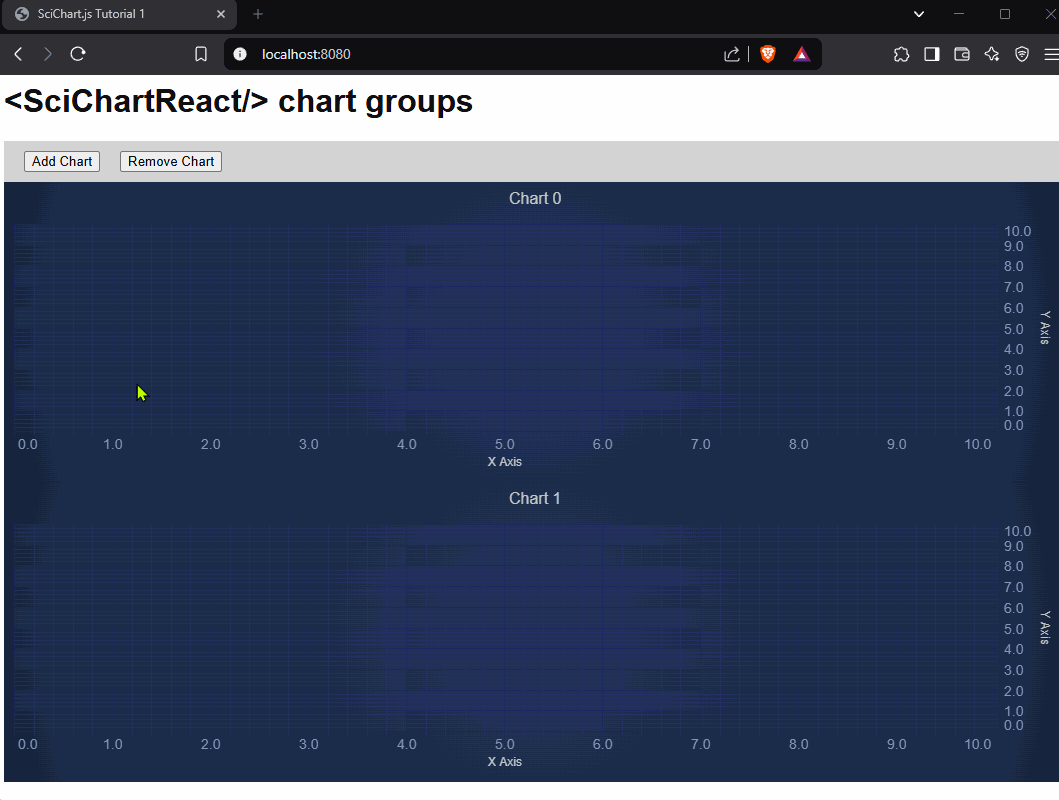

Now go ahead and run the app, you should see this:
