XAxisDragModifier

SciChart.js provides an zooming / panning behavior when dragging the Axis via the XAxisDragModifier📘, available out of the box.

Besides common features which are inherited from the ChartModifierBase class, the XAxisDragModifier📘 allows you to choose panning or scaling via the dragMode📘 property.

Adding a XAxisDragModifier to a Chart

A XAxisDragModifier📘 can be added to the sciChartSurface.chartModifiers📘 collection to enable scaling or panning behavior. For example:

TS
Builder API (JSON Config)

import { XAxisDragModifier, EDragMode } from "scichart";

// Add XAxis Drag behavior
sciChartSurface.chartModifiers.add(
    new XAxisDragModifier({
        dragMode: EDragMode.Scaling,
    })
);

// Demonstrates how to configure the XAxisDrag Modifier in SciChart.js using the Builder API
const { chartBuilder, EChart2DModifierType, EDragMode } = SciChart;
// or, for npm, import { chartBuilder, ... } from "scichart"

const { wasmContext, sciChartSurface } = await chartBuilder.build2DChart(divElementId, {
    modifiers: [
        {
            type: EChart2DModifierType.XAxisDrag,
            options: {
                dragMode: EDragMode.Scaling,
            }
        }
    ]
});

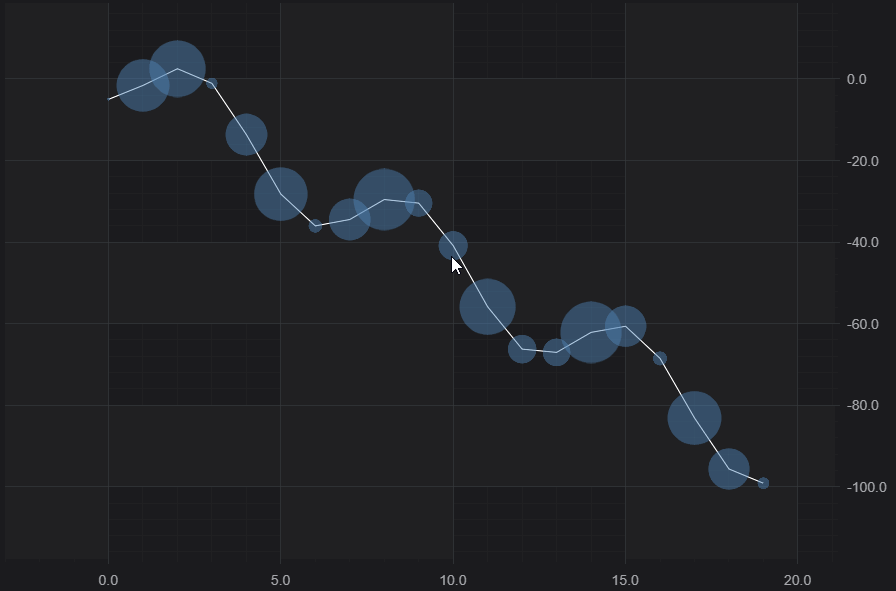

This results in the following behavior:

X and Y Axis Drag Modifier GIF
