RubberBandXyZoomModifier

SciChart.js provides the ability to Drag an area to zoom the chart (known as Rubber-band zoom) using the RubberBandXyZoomModifier📘, available out of the box.

Besides common features which are inherited from the ChartModifierBase class, the RubberBandXyZoomModifier📘 allows animated zooming via the isAnimated📘, animationDuration📘 and easingFunction📘 properties. The drag rectangle can be styled via the fill📘, stroke📘 and strokeThickness📘 properties.

Adding a RubberBandXyZoomModifier to a Chart

A RubberBandXyZoomModifier📘 can be added to the sciChartSurface.chartModifiers📘 collection to enable zoom to fit behavior. For example:

TS
Builder API (JSON Config)

import { RubberBandXyZoomModifier, easing } from "scichart";

// Add Zoom Extents behavior
const rubberBandXyZoomModifier = new RubberBandXyZoomModifier({
   isAnimated: true,
   animationDuration: 400,
   easingFunction: easing.outExpo,
   fill: "#FFFFFF33",
   stroke: "#FFFFFF77",
   strokeThickness: 1,
});
sciChartSurface.chartModifiers.add(rubberBandXyZoomModifier);

// Demonstrates how to configure the RubberBand Zoom Modifier in SciChart.js using the Builder API
const { chartBuilder, EChart2DModifierType, easing } = SciChart;
// or, for npm, import { chartBuilder, ... } from "scichart"

const { wasmContext, sciChartSurface } = await chartBuilder.build2DChart(divElementId, {
   modifiers: [
      {
         type: EChart2DModifierType.RubberBandXYZoom,
         options: {
            isAnimated: true,
            animationDuration: 400,
            easingFunction: easing.outExpo,
            fill: "#FFFFFF33",
            stroke: "#FFFFFF77",
            strokeThickness: 1,
         }
      }
   ]
});

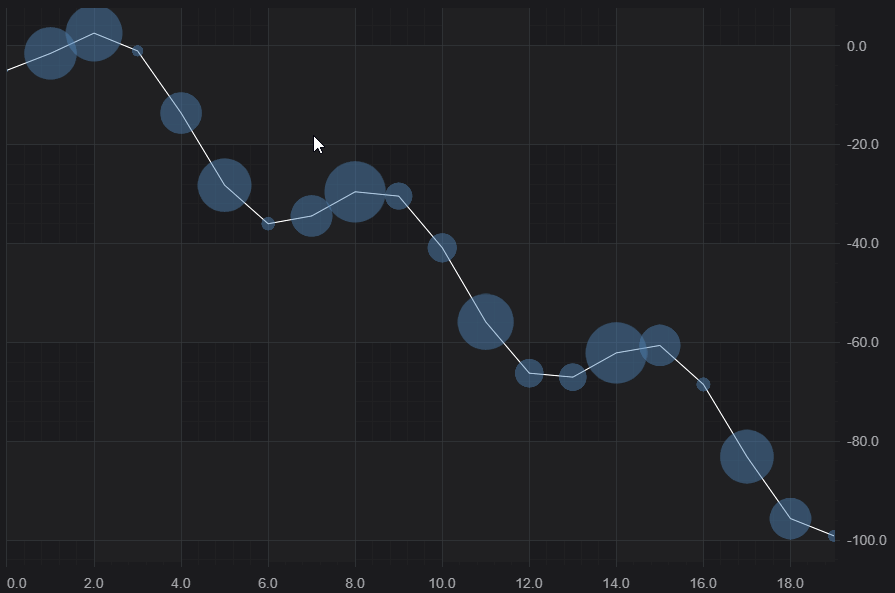

This results in the following behavior when dragging the chart:
