YAxisDragModifier

SciChart.js provides an zooming / panning behavior when dragging the Axis via the YAxisDragModifier📘, available out of the box.

Besides common features which are inherited from the ChartModifierBase class, the YAxisDragModifier📘 allows you to choose panning or scaling via the dragMode📘 property.

Adding a YAxisDragModifier to a Chart

A YAxisDragModifier📘 can be added to the sciChartSurface.chartModifiers📘 collection to enable scaling or panning behavior. For example:

TS
Builder API (JSON Config)

import { YAxisDragModifier, EDragMode } from "scichart";

// Add YAxis Drag behavior
sciChartSurface.chartModifiers.add(
    new YAxisDragModifier({
        dragMode: EDragMode.Scaling,
    })
);

// Demonstrates how to configure the YAxisDrag Modifier in SciChart.js using the Builder API
const { chartBuilder, EChart2DModifierType, EDragMode } = SciChart;
// or, for npm, import { chartBuilder, ... } from "scichart"

const { wasmContext, sciChartSurface } = await chartBuilder.build2DChart(divElementId, {
    modifiers: [
        {
            type: EChart2DModifierType.YAxisDrag,
            options: {
                dragMode: EDragMode.Scaling,
            }
        }
    ]
});

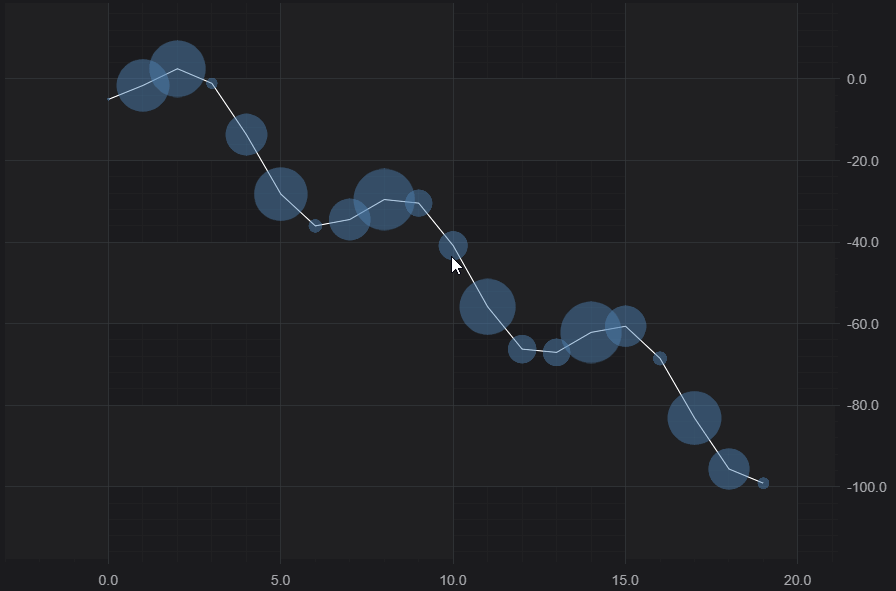

This results in the following behavior:

X and Y Axis Drag Modifier GIF
