PieChart: Custom labels outside of segments

Welcome to the SciChart Forums!

  • Please read our Question Asking Guidelines for how to format a good question
  • Some reputation is required to post answers. Get up-voted to avoid the spam filter!
  • We welcome community answers and upvotes. Every Q&A improves SciChart for everyone

WPF Forums | JavaScript Forums | Android Forums | iOS Forums


Hi guys,

I have some troubles with piecharts in swift. I want to provide custom labels outside of the piecharts segments. I found a screenshot of a nested piechart attached to an issue in your issue tracker. Thats what I want to do in swift, but I couldn’t find out a way to do so. Could you please provide an example code?

Thanks a lot in advance!

  • You must to post comments

Hi, Alexander.

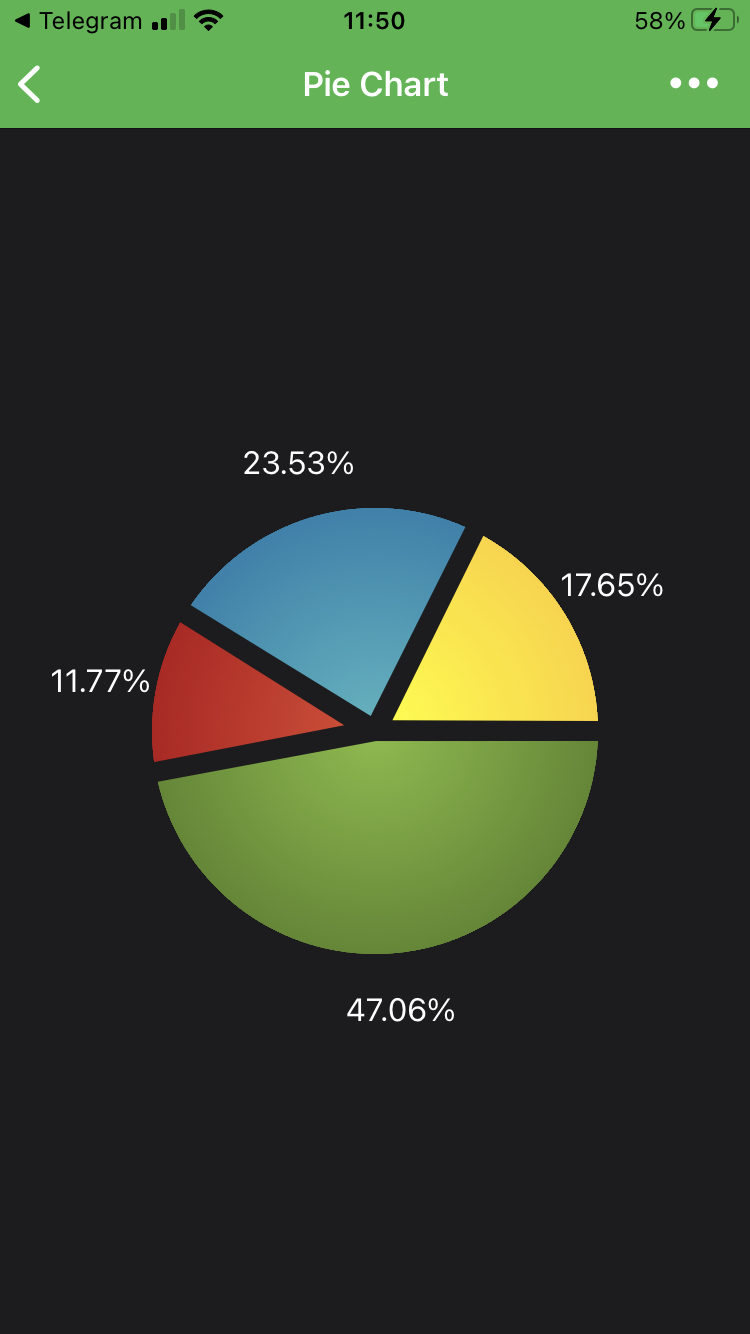

The easiest way to achieve this without overriding the drawing engine is to add second donut series with clear color and the same segments as your pieSeries has.

let pieSeries = SCIPieRenderableSeries()
    pieSeries.segmentsCollection.add(segmentWithValue(segmentValue: 40, title: "Green", centerColor: 0xff84BC3D, edgeColor: 0xff5B8829))

    let donutSeries = SCIDonutRenderableSeries()
    donutSeries.segmentsCollection.add(segmentWithValue(segmentValue: 40, title: "Green", centerColor: 0x00000000, edgeColor: 0x00000000))


    surface.seriesSpacing = 0

    pieSeries.drawLabels = false

func segmentWithValue(segmentValue: Double, title: String, centerColor: UInt32, edgeColor: UInt32) -> SCIPieSegment {
    let segment = SCIPieSegment()
    segment.value = segmentValue
    segment.title = title
    segment.fillStyle = SCIRadialGradientBrushStyle(centerColorCode: centerColor, edgeColorCode: edgeColor)
    segment.titleStyle = SCIFontStyle(textColor: .white)

    segment.strokeStyle = SCISolidPenStyle(color: .clear, thickness: 0)

    return segment

I hope, that helped.

  • Alexander Frankenhauser
    Hi Andriy, thanks a lot for your fast response! That seems to be a pragmatic way to place value labels next to the segments of a pie chart. But to add the titles of the segments as well I assume there is no other way than to use an override func within a custom label provider class. And I can’t find a solution for this problem in the developer documentation for pie charts/donut charts. Using a custom label provider for a numerical axis of a column series for example was not a problem. May be you have a sample code for this purpose as well? Thank you very much in advance! Alex
  • Alexander Frankenhauser
    Did it! It works using the LabelFormatter protocol and the „formatLabel“ function. A bit complicated but combined with the suggestion of Andriy I have what I wanted!
