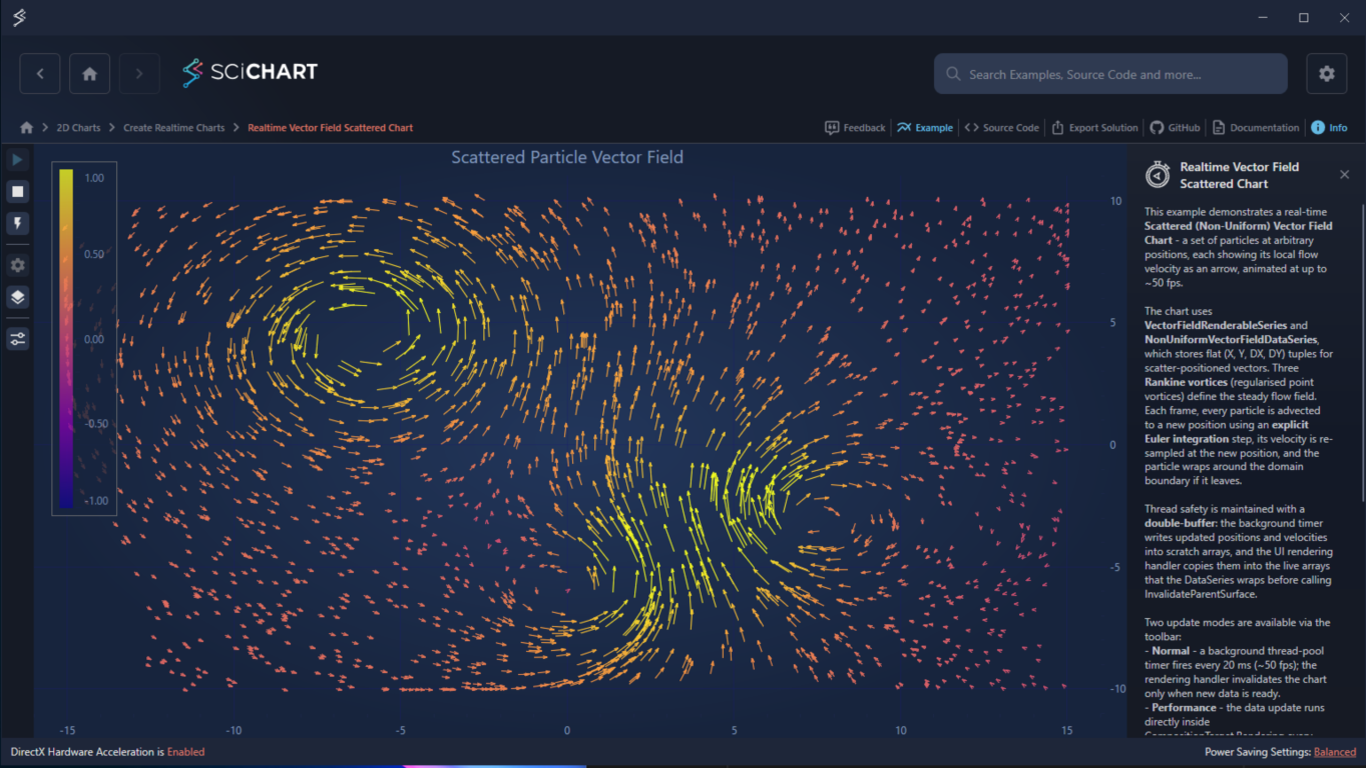

WPF Real-Time Vector Field Scattered Chart

<UserControl x:Class="SciChart.Examples.Examples.CreateRealtimeChart.RealtimeScatteredVectorFieldChartView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:ext="http://schemas.abtsoftware.co.uk/scichart/exampleExternals"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:s="http://schemas.abtsoftware.co.uk/scichart"
             Loaded="OnExampleLoaded"
             Unloaded="OnExampleUnloaded"
             d:DesignHeight="400"
             d:DesignWidth="600"
             mc:Ignorable="d">

    <UserControl.Resources>
        <!-- Plasma palette: perceptually-uniform dark-blue → purple → pink → orange → yellow.
             Ideal for magnitude colouring. Range is set from code-behind after assignment. -->
        <s:HeatmapColorPalette x:Key="PlasmaColorPalette" Minimum="0" Maximum="1">
            <GradientStop Color="#FF0D0887" Offset="0.00"/>
            <GradientStop Color="#FF7E03A8" Offset="0.25"/>
            <GradientStop Color="#FFCC4778" Offset="0.50"/>
            <GradientStop Color="#FFF89540" Offset="0.75"/>
            <GradientStop Color="#FFF0F921" Offset="1.00"/>
        </s:HeatmapColorPalette>

        <!-- Plasma circular: same hues with first colour repeated at offset 1.0 so the
             palette wraps smoothly for ByDirection mode. -->
        <s:HeatmapColorPalette x:Key="PlasmaCircularColorPalette" Minimum="0" Maximum="1">
            <GradientStop Color="#FF0D0887" Offset="0.00"/>
            <GradientStop Color="#FF7E03A8" Offset="0.20"/>
            <GradientStop Color="#FFCC4778" Offset="0.40"/>
            <GradientStop Color="#FFF89540" Offset="0.60"/>
            <GradientStop Color="#FFF0F921" Offset="0.80"/>
            <GradientStop Color="#FF0D0887" Offset="1.00"/>
        </s:HeatmapColorPalette>

        <!-- Cool-Warm diverging palette: blue → neutral grey → red.
             Well-suited for signed or direction-based colouring. -->
        <s:HeatmapColorPalette x:Key="CoolWarmColorPalette" Minimum="0" Maximum="1">
            <GradientStop Color="#FF3B4CC0" Offset="0.00"/>
            <GradientStop Color="#FFDCDCF0" Offset="0.50"/>
            <GradientStop Color="#FFB40426" Offset="1.00"/>
        </s:HeatmapColorPalette>

        <!-- Cool-Warm circular: first colour repeated at offset 1.0 for ByDirection mode. -->
        <s:HeatmapColorPalette x:Key="CoolWarmCircularColorPalette" Minimum="0" Maximum="1">
            <GradientStop Color="#FF3B4CC0" Offset="0.00"/>
            <GradientStop Color="#FFDCDCF0" Offset="0.33"/>
            <GradientStop Color="#FFB40426" Offset="0.67"/>
            <GradientStop Color="#FF3B4CC0" Offset="1.00"/>
        </s:HeatmapColorPalette>
    </UserControl.Resources>

    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto" />
            <ColumnDefinition Width="*" />
        </Grid.ColumnDefinitions>

        <!-- Toolbar: start/stop simulation and configure particle count and vector appearance -->
        <ext:SciChartInteractionToolbar Grid.Column="0">

            <ToggleButton x:Name="StartButton"
                          Click="OnStartClick"
                          Style="{StaticResource DefaultUncheckableToggleButtonStyle}"
                          ToolTipService.ToolTip="Start animation">
                <ext:ToolbarIcon Kind="Play" Height="14" Width="14" Style="{StaticResource ToolbarButtonIconStyle}"/>
            </ToggleButton>

            <ToggleButton x:Name="StopButton"
                          IsEnabled="False"
                          Click="OnStopClick"
                          Style="{StaticResource DefaultUncheckableToggleButtonStyle}"
                          ToolTipService.ToolTip="Stop animation">
                <ext:ToolbarIcon Kind="Stop" Height="12" Width="12" Style="{StaticResource ToolbarButtonIconStyle}"/>
            </ToggleButton>

            <!-- Toggles performance mode: on = update runs every composition frame (max FPS);
                 off = timer drives updates at ~50 fps, keeping the render thread free -->
            <ToggleButton x:Name="PerformanceModeButton"
                          IsChecked="False"
                          Click="OnPerformanceModeToggled"
                          Style="{StaticResource DefaultToggleButtonStyle}"
                          ToolTipService.ToolTip="Performance mode">
                <ext:ToolbarIcon Kind="Flash" Height="14" Width="14" Style="{StaticResource ToolbarButtonIconStyle}"/>
            </ToggleButton>

            <ext:FlyoutSeparator/>

            <!-- Particle count must be changed while the simulation is stopped -->
            <ext:FlyoutMenuButton x:Name="ChangeCountButton" ToolTipService.ToolTip="Simulation settings">
                <ext:ToolbarIcon Kind="Cog" Height="16" Width="16" Style="{StaticResource ToolbarButtonIconStyle}"/>
                <ext:FlyoutMenuButton.PopupContent>
                    <StackPanel Margin="5" MinWidth="200" Orientation="Vertical">
                        <TextBlock Text="Particle Count" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <StackPanel Orientation="Horizontal">
                            <Slider x:Name="ParticleCountSlider"
                                    Minimum="100" Maximum="10000" Value="2000"
                                    Width="130" VerticalAlignment="Center"
                                    IsSnapToTickEnabled="True" TickFrequency="100"
                                    ValueChanged="OnParticleCountUpdated"/>
                            <TextBlock Text="{Binding Source={x:Reference Name=ParticleCountSlider}, Path=Value, StringFormat={}{0:N0}}"
                                       VerticalAlignment="Center"
                                       Margin="6,0,0,0"/>
                        </StackPanel>
                    </StackPanel>
                </ext:FlyoutMenuButton.PopupContent>
            </ext:FlyoutMenuButton>

            <!-- Culling options: LOD cell size and density control -->
            <ext:FlyoutMenuButton ToolTipService.ToolTip="Culling options">
                <ext:ToolbarIcon Kind="Layers" Height="16" Width="16" Style="{StaticResource ToolbarButtonIconStyle}"/>
                <ext:FlyoutMenuButton.PopupContent>
                    <StackPanel Margin="5" MinWidth="200" Orientation="Vertical">

                        <!-- Cell size: 0 = disabled; higher values reduce draw calls more aggressively -->
                        <TextBlock Text="Culling Cell Size" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <StackPanel Orientation="Horizontal">
                            <Slider x:Name="LodCellSizeSlider"
                                    Minimum="0" Maximum="20"
                                    Value="{Binding Source={x:Reference Name=VectorSeries}, Path=CullingCellSizePx, Mode=TwoWay}"
                                    Width="130" VerticalAlignment="Center"
                                    IsSnapToTickEnabled="True" TickFrequency="0.5"/>
                            <TextBlock Text="{Binding Source={x:Reference Name=LodCellSizeSlider}, Path=Value, StringFormat={}{0:0.#} px}"
                                       VerticalAlignment="Center"
                                       Margin="6,0,0,0"/>
                        </StackPanel>

                        <!-- Max vectors per cell: 1 = single winner; higher values show more in dense regions -->
                        <TextBlock Text="Max Vectors Per Cell" Margin="0,10,0,4" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <StackPanel Orientation="Horizontal">
                            <Slider x:Name="MaxVectorsPerCellSlider"
                                    Minimum="1" Maximum="20"
                                    Value="{Binding Source={x:Reference Name=VectorSeries}, Path=CullingMaxVectorsPerCell, Mode=TwoWay}"
                                    Width="130" VerticalAlignment="Center"
                                    IsSnapToTickEnabled="True" TickFrequency="1"/>
                            <TextBlock Text="{Binding Source={x:Reference Name=MaxVectorsPerCellSlider}, Path=Value, StringFormat={}{0:0}}"
                                       VerticalAlignment="Center"
                                       Margin="6,0,0,0"/>
                        </StackPanel>

                    </StackPanel>
                </ext:FlyoutMenuButton.PopupContent>
            </ext:FlyoutMenuButton>

            <ext:FlyoutSeparator/>

            <!-- Vector options: colour mapping, arrow length/width, normalization -->
            <ext:FlyoutMenuButton ToolTipService.ToolTip="Vector options">
                <ext:ToolbarIcon Kind="TuneVariant" Height="16" Width="16" Style="{StaticResource ToolbarButtonIconStyle}"/>
                <ext:FlyoutMenuButton.PopupContent>
                    <StackPanel Margin="5" MinWidth="200" Orientation="Vertical">

                        <!-- Color map preset: selects between the palettes declared in resources above -->
                        <TextBlock Text="Color Map" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <ComboBox x:Name="ColorMapCombo"
                                  Margin="0,4,0,0"
                                  SelectionChanged="OnColorMapChanged"/>

                        <!-- Color mode: Solid, ByMagnitude or ByDirection -->
                        <TextBlock Text="Color Mode" Margin="0,10,0,4" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <ComboBox x:Name="ColorModeCombo"
                                  SelectionChanged="OnColorModeChanged"/>

                        <!-- Length mode: DataUnits, FixedPixels or MagnitudePixels -->
                        <TextBlock Text="Length Mode" Margin="0,10,0,4" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <ComboBox x:Name="LengthModeCombo"
                                  SelectionChanged="OnLengthModeChanged"/>

                        <!-- MagnitudeScale: visible only in MagnitudePixels mode -->
                        <TextBlock x:Name="MagnitudeScaleHeader" Text="Magnitude Scale" Margin="0,10,0,4" Visibility="Collapsed" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <StackPanel x:Name="MagnitudeScalePanel" Orientation="Horizontal" Visibility="Collapsed">
                            <Slider x:Name="MagnitudeScaleSlider"
                                    Minimum="1" Maximum="100"
                                    Value="{Binding Source={x:Reference Name=VectorSeries}, Path=MagnitudeScale, Mode=TwoWay}"
                                    Width="130" VerticalAlignment="Center"/>
                            <TextBlock Text="{Binding Source={x:Reference Name=MagnitudeScaleSlider}, Path=Value, StringFormat={}{0:F0}}"
                                       VerticalAlignment="Center"
                                       Margin="6,0,0,0"/>
                        </StackPanel>

                        <!-- PixelLength: visible only in FixedPixels mode -->
                        <TextBlock x:Name="PixelLengthHeader" Text="Pixel Length" Margin="0,10,0,4" Visibility="Collapsed" Style="{StaticResource FlyoutMenuHeaderStyle}"/>
                        <StackPanel x:Name="PixelLengthPanel" Orientation="Horizontal" Visibility="Collapsed">
                            <Slider x:Name="PixelLengthSlider"
                                    Minimum="5" Maximum="80"
                                    Value="{Binding Source={x:Reference Name=VectorSeries}, Path=PixelLength, Mode=TwoWay}"
                                    Width="130" VerticalAlignment="Center"/>
                            <TextBlock Text="{Binding Source={x:Reference Name=PixelLengthSlider}, Path=Value, StringFormat={}{0:F0}}"
                                       VerticalAlignment="Center"
                                       Margin="6,0,0,0"/>
                        </StackPanel>

                    </StackPanel>
                </ext:FlyoutMenuButton.PopupContent>
            </ext:FlyoutMenuButton>

        </ext:SciChartInteractionToolbar>

        <!-- Main chart surface. DataSeries is assigned from code-behind after loading. -->
        <s:SciChartSurface x:Name="SciChartSurface"
                           Grid.Column="1"
                           ChartTitle="Scattered Particle Vector Field">

            <s:SciChartSurface.RenderableSeries>
                <!-- VectorFieldRenderableSeries renders each particle as an arrow at its position.
                     ColorMap is assigned from code-behind and maps magnitude or direction to colour. -->
                <s:VectorFieldRenderableSeries x:Name="VectorSeries"
                                               Stroke="#4FC3F7"
                                               StrokeThickness="1"
                                               ArrowHeadLength="5"
                                               ArrowHeadWidth="3"
                                               IsArrowHeadFilled="False"
                                               LengthMode="MagnitudePixels"
                                               MagnitudeScale="30"
                                               ColorMode="ByMagnitude"
                                               AntiAliasing="True"
                                               ColorMap="{StaticResource PlasmaColorPalette}"/>
            </s:SciChartSurface.RenderableSeries>

            <s:SciChartSurface.XAxis>
                <s:NumericAxis DrawMajorBands="False"
                               DrawMinorGridLines="False"
                               VisibleRange="-16, 16"/>
            </s:SciChartSurface.XAxis>

            <s:SciChartSurface.YAxis>
                <s:NumericAxis DrawMajorBands="False"
                               DrawMinorGridLines="False"
                               VisibleRange="-11, 11"/>
            </s:SciChartSurface.YAxis>

            <s:SciChartSurface.ChartModifier>
                <s:ModifierGroup>
                    <s:ZoomPanModifier/>
                    <s:ZoomExtentsModifier/>
                    <s:MouseWheelZoomModifier/>
                </s:ModifierGroup>
            </s:SciChartSurface.ChartModifier>

        </s:SciChartSurface>

        <!-- Vertical colour legend bound to the VectorSeries colour map -->
        <s:HeatmapColorMap Grid.Column="1"
                           Margin="20,20,0,0"
                           HorizontalAlignment="Left"
                           VerticalAlignment="Top"
                           Height="400"
                           Background="{StaticResource ThemedSurfaceChartBackground}"
                           Foreground="{Binding Source={x:Reference Name=SciChartSurface}, Path=Foreground}"
                           ColorPalette="{Binding Source={x:Reference Name=VectorSeries}, Path=ColorMap}"
                           Minimum="{Binding Source={x:Reference Name=VectorSeries}, Path=ColorMap.Minimum, Mode=TwoWay}"
                           Maximum="{Binding Source={x:Reference Name=VectorSeries}, Path=ColorMap.Maximum, Mode=TwoWay}"
                           TextFormatting="0.00"
                           Opacity="0.8"
                           BorderBrush="#777"
                           BorderThickness="1"
                           Orientation="Vertical"/>

        <!-- Performance overlay: shows render FPS and draw call stats -->
        <s:SciChartPerformanceOverlay x:Name="ChartPerformanceOverlay"
                                      Grid.Column="1"
                                      Margin="0,0,50,0"
                                      VerticalAlignment="Top"
                                      Background="#33FFFFFF"
                                      FontWeight="Bold"
                                      Foreground="#FFF"
                                      Padding="10"
                                      IsHitTestVisible="False"
                                      Visibility="Collapsed"
                                      TargetSurface="{Binding ElementName=SciChartSurface}" />

    </Grid>
</UserControl>

// *************************************************************************************
// SCICHART® Copyright SciChart Ltd. 2011-2026. All rights reserved.
//
// Web:     http://www.scichart.com
// Support: support@scichart.com
// Sales:   sales@scichart.com
//
// RealtimeScatteredVectorFieldChartView.xaml.cs is part of the SCICHART® Examples. Permission is hereby granted
// to modify, create derivative works, distribute and publish any part of this source
// code whether for commercial, private or personal use.
//
// The SCICHART® examples are distributed in the hope that they will be useful, but
// without any warranty. It is provided "AS IS" without warranty of any kind, either
// expressed or implied.
// *************************************************************************************
using SciChart.Charting.Model.DataSeries;
using SciChart.Charting.Visuals.RenderableSeries;
using SciChart.Data.Model;
using System;
using System.Threading;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;

namespace SciChart.Examples.Examples.CreateRealtimeChart
{
    /// <summary>
    /// Demonstrates a real-time animated <see cref="VectorFieldRenderableSeries"/> backed by a
    /// <see cref="NonUniformVectorFieldDataSeries"/> with arbitrarily-placed particles.
    /// Particles move along the flow field defined by three Rankine vortices (regularised point
    /// vortices), wrapping around the domain boundary when they leave it.
    ///
    /// Two update modes are supported:
    /// <list type="bullet">
    ///   <item><description>
    ///     <b>Normal</b> — a <see cref="System.Threading.Timer"/> fires every 20 ms on a thread-pool
    ///     thread to update the data arrays and sets a flag; <see cref="CompositionTarget.Rendering"/>
    ///     calls <c>InvalidateParentSurface</c> only when the flag is set. This caps updates at ~50 fps
    ///     while keeping the render thread free between updates.
    ///   </description></item>
    ///   <item><description>
    ///     <b>Performance</b> (<see cref="_enablePerformanceShowMode"/> = true) — the data update runs
    ///     directly inside the <see cref="CompositionTarget.Rendering"/> handler every frame, giving
    ///     the maximum achievable throughput with no artificial cap.
    ///   </description></item>
    /// </list>
    /// </summary>
    public partial class RealtimeScatteredVectorFieldChartView : UserControl
    {
        private const double _vectorScale = 0.35;
        private const double DomainX = 15.0;
        private const double DomainY = 10.0;

        // Epsilon regularises the vortex core singularity; smaller values produce tighter cores
        private const double Epsilon = 1.5;

        // Dt is the Euler integration time step used to advect particles each frame
        private const double Dt = 0.025;

        // Interval between data updates in normal (non-performance) mode
        private const int UpdateIntervalMs = 20;

        // Three Rankine vortices: (centre X, centre Y, circulation strength Γ)
        // Negative Γ = clockwise rotation; positive Γ = counter-clockwise
        private static readonly (double Cx, double Cy, double Gamma)[] Vortices =
        {
            (-6.0,  4.5,  8.0),
            ( 7.0, -3.0, -6.5),
            ( 0.5, -6.0,  5.5),
        };

        // Names and corresponding XAML resource keys for the selectable colour palettes.
        // The palette gradient stops are declared as HeatmapColorPalette resources in XAML.
        private static readonly string[] PaletteNames = { "Plasma", "Cool-Warm" };
        private static readonly string[] PaletteResourceKeys = { "PlasmaColorPalette", "CoolWarmColorPalette" };
        private static readonly string[] CircularPaletteResourceKeys = { "PlasmaCircularColorPalette", "CoolWarmCircularColorPalette" };

        private static readonly FieldDataDistributionArgs DistributionArgs = new FieldDataDistributionArgs
        {
            XRange = new DoubleRange(-DomainX, DomainX),
            YRange = new DoubleRange(-DomainY, DomainY),
            IsStationary = false
        };

        // Double-buffered particle state to prevent rendering artifacts caused by the background
        // timer writing positions while SciChart reads them mid-frame.
        //
        // The timer writes exclusively to the _*Buf arrays (under _dataLock).
        // OnRenderingTick (UI thread) copies _*Buf → _px/_py/_dxs/_dys under the same lock,
        // then calls InvalidateParentSurface. SciChart always reads a fully consistent snapshot.
        private double[] _px;
        private double[] _py;
        private double[] _dxs;
        private double[] _dys;
        private double[] _pxBuf;
        private double[] _pyBuf;
        private double[] _dxsBuf;
        private double[] _dysBuf;
        private readonly object _dataLock = new object();

        private NonUniformVectorFieldDataSeries _dataSeries;
        private Timer _updateTimer;
        private bool _isRunning;
        private volatile bool _newDataReady;

        private bool _enablePerformanceShowMode;

        /// <summary>
        /// Initializes a new instance of <see cref="RealtimeScatteredVectorFieldChartView"/>.
        /// </summary>
        public RealtimeScatteredVectorFieldChartView()
        {
            InitializeComponent();
            // Timer starts suspended; Change() activates it when the animation starts
            _updateTimer = new Timer(OnUpdateTimer, null, Timeout.Infinite, Timeout.Infinite);
        }

        /// <summary>
        /// When <c>true</c>, the data update runs directly inside the <see cref="CompositionTarget.Rendering"/>
        /// handler on every frame, giving maximum throughput with no rate cap.
        /// When <c>false</c>, a <see cref="System.Threading.Timer"/> drives updates at
        /// <see cref="UpdateIntervalMs"/> ms intervals, keeping the render thread free between updates.
        /// Also controls visibility of the <see cref="ChartPerformanceOverlay"/>.
        /// </summary>
        private bool EnablePerformanceShowMode
        {
            get => _enablePerformanceShowMode;
            set
            {
                _enablePerformanceShowMode = value;
                ChartPerformanceOverlay.Visibility = _enablePerformanceShowMode ? Visibility.Visible : Visibility.Collapsed;
            }
        }

        private void OnExampleLoaded(object sender, RoutedEventArgs e)
        {
            foreach (VectorColorMode mode in Enum.GetValues(typeof(VectorColorMode)))
                ColorModeCombo.Items.Add(mode);
            ColorModeCombo.SelectedItem = VectorColorMode.ByMagnitude;

            foreach (VectorLengthMode mode in Enum.GetValues(typeof(VectorLengthMode)))
                LengthModeCombo.Items.Add(mode);
            LengthModeCombo.SelectedItem = VectorLengthMode.MagnitudePixels;

            foreach (string name in PaletteNames)
                ColorMapCombo.Items.Add(name);
            ColorMapCombo.SelectedIndex = 0;

            OnStartClick(this, null);
        }

        private void OnExampleUnloaded(object sender, RoutedEventArgs e)
        {
            OnStopClick(this, null);
            _updateTimer?.Dispose();

            _dataSeries?.Clear(true);
            _px = _py = _dxs = _dys = null;
            _pxBuf = _pyBuf = _dxsBuf = _dysBuf = null;
            ColorModeCombo.Items.Clear();
            LengthModeCombo.Items.Clear();
            ColorMapCombo.Items.Clear();
        }


        /// <summary>
        /// Allocates particle state arrays and creates the initial <see cref="NonUniformVectorFieldDataSeries"/>.
        /// Particles are scattered randomly within the domain using a fixed seed for reproducibility.
        /// </summary>
        private void InitializeParticles(int count)
        {
            var rng = new Random(12345);
            _pxBuf = new double[count];
            _pyBuf = new double[count];
            _dxsBuf = new double[count];
            _dysBuf = new double[count];

            for (int i = 0; i < count; i++)
            {
                _pxBuf[i] = (rng.NextDouble() * 2.0 - 1.0) * DomainX;
                _pyBuf[i] = (rng.NextDouble() * 2.0 - 1.0) * DomainY;
                GetFlowFieldVector(_pxBuf[i], _pyBuf[i], out double vx, out double vy);
                _dxsBuf[i] = vx * _vectorScale;
                _dysBuf[i] = vy * _vectorScale;
            }

            _px = (double[])_pxBuf.Clone();
            _py = (double[])_pyBuf.Clone();
            _dxs = (double[])_dxsBuf.Clone();
            _dys = (double[])_dysBuf.Clone();

            _dataSeries = new NonUniformVectorFieldDataSeries(_px, _py, _dxs, _dys);
            VectorSeries.DataSeries = _dataSeries;
        }

        /// <summary>
        /// Computes the 2-D velocity induced at (x, y) by the superimposed regularised vortices.
        /// Uses the Rankine (cut-off) vortex model: v = Γ / (2π (r² + ε²)) × r⊥.
        /// </summary>
        private static void GetFlowFieldVector(double x, double y, out double vx, out double vy)
        {
            vx = 0.0;
            vy = 0.0;
            foreach (var (cx, cy, gamma) in Vortices)
            {
                double rx = x - cx;
                double ry = y - cy;
                double r2 = rx * rx + ry * ry + Epsilon * Epsilon;
                vx -= gamma * ry / r2;
                vy += gamma * rx / r2;
            }
        }

        /// <summary>
        /// Wraps a scalar value into the periodic domain [min, max].
        /// Used to keep particles inside the visible domain after advection.
        /// </summary>
        private static double Wrap(double value, double min, double max)
        {
            double range = max - min;
            double normalized = (value - min) / range;
            return min + (normalized - Math.Floor(normalized)) * range;
        }

        /// <summary>
        /// Timer callback — fires every 20 ms on a thread-pool thread.
        /// Advances each particle by one Euler step, evaluates the flow field at the new
        /// position, then signals the rendering handler via <see cref="_newDataReady"/>.
        /// </summary>
        private void OnUpdateTimer(object state)
        {
            if (_dataSeries == null) return;

            int n = _pxBuf.Length;
            lock (_dataLock)
            {
                for (int i = 0; i < n; i++)
                {
                    // Advect particle position using current flow velocity (explicit Euler)
                    GetFlowFieldVector(_pxBuf[i], _pyBuf[i], out double vx, out double vy);
                    _pxBuf[i] = Wrap(_pxBuf[i] + vx * Dt, -DomainX, DomainX);
                    _pyBuf[i] = Wrap(_pyBuf[i] + vy * Dt, -DomainY, DomainY);

                    // Re-sample field at new position for the arrow direction
                    GetFlowFieldVector(_pxBuf[i], _pyBuf[i], out vx, out vy);
                    _dxsBuf[i] = vx * _vectorScale;
                    _dysBuf[i] = vy * _vectorScale;
                }
            }

            // All writes complete — signal the rendering handler that fresh data is available
            _newDataReady = true;
        }

        /// <summary>
        /// Called every WPF composition frame.
        /// In performance mode the data update runs here directly, so the chart redraws every frame
        /// with no cap. In normal mode the chart is invalidated only when the timer has set the flag.
        /// </summary>
        private void OnRenderingTick(object sender, EventArgs e)
        {
            if (_enablePerformanceShowMode)
            {
                // No concurrent timer in this mode — update buf arrays then copy directly (no lock needed)
                OnUpdateTimer(null);
                Array.Copy(_pxBuf, _px, _px.Length);
                Array.Copy(_pyBuf, _py, _py.Length);
                Array.Copy(_dxsBuf, _dxs, _dxs.Length);
                Array.Copy(_dysBuf, _dys, _dys.Length);
                _dataSeries?.InvalidateParentSurface(RangeMode.None, DistributionArgs, hasDataChanges: true);
            }
            else
            {
                if (!_newDataReady) return;
                _newDataReady = false;
                lock (_dataLock)
                {
                    Array.Copy(_pxBuf, _px, _px.Length);
                    Array.Copy(_pyBuf, _py, _py.Length);
                    Array.Copy(_dxsBuf, _dxs, _dxs.Length);
                    Array.Copy(_dysBuf, _dys, _dys.Length);
                }
                _dataSeries.InvalidateParentSurface(RangeMode.None, DistributionArgs, hasDataChanges: true);
            }
        }

        private void OnStartClick(object sender, RoutedEventArgs e)
        {
            ChangeCountButton.IsEnabled = false;
            StartButton.IsEnabled = false;
            StartButton.IsChecked = true;
            StopButton.IsEnabled = true;
            StopButton.IsChecked = false;

            if (_dataSeries == null)
                InitializeParticles((int)ParticleCountSlider.Value);

            if (!_isRunning)
            {
                _isRunning = true;
                CompositionTarget.Rendering -= OnRenderingTick;
                CompositionTarget.Rendering += OnRenderingTick;
                // In performance mode the rendering handler drives updates itself every frame;
                // in normal mode the timer produces data independently at ~50 fps.
                if (!_enablePerformanceShowMode)
                    _updateTimer.Change(0, UpdateIntervalMs);
            }
        }

        private void OnStopClick(object sender, RoutedEventArgs e)
        {
            if (_isRunning)
            {
                _isRunning = false;
                if (!_enablePerformanceShowMode)
                    _updateTimer.Change(Timeout.Infinite, Timeout.Infinite);
                CompositionTarget.Rendering -= OnRenderingTick;
            }

            ChangeCountButton.IsEnabled = true;
            StartButton.IsEnabled = true;
            StartButton.IsChecked = false;
            StopButton.IsEnabled = false;
            StopButton.IsChecked = true;
        }

        private void OnPerformanceModeToggled(object sender, RoutedEventArgs e)
        {
            bool wasRunning = _isRunning;
            if (wasRunning) OnStopClick(this, null);
            EnablePerformanceShowMode = PerformanceModeButton.IsChecked == true;
            if (wasRunning) OnStartClick(this, null);
        }


        private void OnParticleCountUpdated(object sender, RoutedPropertyChangedEventArgs<double> e)
        {
            // Clear the existing data series so InitializeParticles creates a fresh one on next Start
            if (_dataSeries != null)
            {
                _dataSeries.Clear(true);
                _dataSeries.InvalidateParentSurface(RangeMode.None);
                _dataSeries = null;
            }
        }

        private void OnColorModeChanged(object sender, SelectionChangedEventArgs e)
        {
            if (VectorSeries == null || ColorModeCombo.SelectedItem == null) return;
            var mode = (VectorColorMode)ColorModeCombo.SelectedItem;
            VectorSeries.ColorMode = mode;
            if (ColorMapCombo.SelectedItem != null)
                ApplyColorMapPreset((string)ColorMapCombo.SelectedItem);
            else
                UpdateColorMapRange(mode);
        }

        /// <summary>
        /// Adjusts the colour map range to match the selected colour mode.
        /// Direction mode maps [0, 2π]; magnitude mode maps [-1, 1] (normalised).
        /// </summary>
        private void UpdateColorMapRange(VectorColorMode mode)
        {
            if (VectorSeries?.ColorMap == null) return;

            VectorSeries.ColorMap.Minimum = mode == VectorColorMode.ByDirection ? 0 : -1;
            VectorSeries.ColorMap.Maximum = mode == VectorColorMode.ByDirection ? 2 * Math.PI : 1;
        }

        private void OnColorMapChanged(object sender, SelectionChangedEventArgs e)
        {
            if (VectorSeries == null || ColorMapCombo.SelectedItem == null) return;
            ApplyColorMapPreset((string)ColorMapCombo.SelectedItem);
        }

        /// <summary>
        /// Assigns the <see cref="HeatmapColorPalette"/> resource with the given preset name
        /// to the vector series, then updates the range for the current colour mode.
        /// Selects the circular variant when <c>ByDirection</c> is active so the hue wraps
        /// smoothly at 0°/360°; otherwise uses the linear variant.
        /// Palettes are declared as XAML resources in the view's resource dictionary.
        /// </summary>
        private void ApplyColorMapPreset(string name)
        {
            int idx = Array.IndexOf(PaletteNames, name);
            if (idx < 0) return;

            string key = VectorSeries.ColorMode == VectorColorMode.ByDirection
                ? CircularPaletteResourceKeys[idx]
                : PaletteResourceKeys[idx];
            VectorSeries.ColorMap = (HeatmapColorPalette)Resources[key];
            UpdateColorMapRange(VectorSeries.ColorMode);
        }

        private void OnLengthModeChanged(object sender, SelectionChangedEventArgs e)
        {
            if (VectorSeries == null || LengthModeCombo.SelectedItem == null) return;
            var mode = (VectorLengthMode)LengthModeCombo.SelectedItem;
            VectorSeries.LengthMode = mode;
            if (MagnitudeScaleHeader != null)
                MagnitudeScaleHeader.Visibility = mode == VectorLengthMode.MagnitudePixels ? Visibility.Visible : Visibility.Collapsed;
            if (MagnitudeScalePanel != null)
                MagnitudeScalePanel.Visibility = mode == VectorLengthMode.MagnitudePixels ? Visibility.Visible : Visibility.Collapsed;
            if (PixelLengthHeader != null)
                PixelLengthHeader.Visibility = mode == VectorLengthMode.FixedPixels ? Visibility.Visible : Visibility.Collapsed;
            if (PixelLengthPanel != null)
                PixelLengthPanel.Visibility = mode == VectorLengthMode.FixedPixels ? Visibility.Visible : Visibility.Collapsed;
        }

    }
}
